Monitoring using zencommand

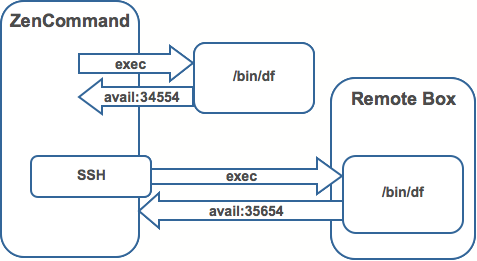

You can use Resource Manager to run commands and scripts using COMMAND-type data sources. These data sources are executed by the zencommand process, either locally in the zencommand container on the collector or remotely on a monitored device. You can use zencommand to capture performance metrics as data points and to generate events based on the return code of the command.

Data source options

When creating or editing a COMMAND type data source, you are presented with the following options:

Field	Default value	Description
Name		Enter a name for the data source.
Enabled	True	Select this checkbox to activate the data source for this template. Clear the checckbox to disable the data source.
Event Class	/Cmd/Fail	Specify the event class to use when sending events to the system when the command exits with a non-zero return code. The event class applies to events that are generated directly by the data source. Events that are generated by threshold evaluations use their configured event class.
Parser	Auto	Specify the script that decodes the output of a command and converts it to one or more data points or events. For more information, see parsers.
Component		Enter the component name to use when zencommand sends events to the system.
Severity	Warning	Set the default severity to use when sending events to the system in the event of a non-zero return code. When the command exits with a 0 return code, the event severity is set to 0 (Clear). Events generated by threshold evaluations use their configured severity.
Cycle Time	${here/zCommandCollectionInterval}	Set the frequency that a command runs in seconds. You can can set this values to a positive integer, or the value of zCommandCollectionInterval through a TALES evaluation (i.e, ${here/zCommandCollectionInterval}). The default value of zCommandCollectionInterval is 300 seconds, or five minutes.
Use SSH	False	Select this checkbox if you want the zencommand to execute the Command Template over a remote session to the monitored device using the protocol specified by the zCommandProtocol configuration property. Clear this checkbox if you want the zencommand to execute the Command Template inside the zencommand service container on the collector host where it's currently running.
Event Key		Enter a custom event key for any events generated by the data source. This event key applies to events generated directly by the data source. Events generated by threshold evaluations use their configured event key.
Command Template		Enter the command to run. For more information, see Command Template options.

Command Template options

The Command Template specifies the command to run.

Zencommand builds the command template string by using Zope TALES expressions. The following variables are available when evaluating the template:

Variable	Description
zCommandPath	Path to the executable commands or scripts on a given collector or device. This comes from the configuration property zCommandPath. zCommandPath is automatically added to a command if a path is absent from the beginning of the command.
devname	Device name of the device against which the command is being evaluated.
dev	Device object against which the command is being evaluated.
here	Context of evaluation. For a device, this is equivalent to dev. For a component (such as a file system or interface), this is the component object. Can be seen on component templates as ${here/id}.
compname	The name of the component as a string, if this command is evaluated against a component.
now	Current time.

Zenoss accesses template values much like shell variables. You can view examples of these and other expressions on templates in the /Server/SSH/ sub-classes.

For more information, see TALES expressions.

Note

TALES evaluation of the command template field treats instances of the dollar sign character ($) as the beginning of a TALES expression. If your command uses a $ character that is not part of a TALES expression, you must escape it with another $. For example, to use the following command

export PATH=$PATH:/bin:/sbin:/usr/bin:/usr/sbin

edit it to the following format:

export PATH=$$PATH:/bin:/sbin:/usr/bin:/usr/sbin

Parsers

To convert the output from a command or script into one or more data points or events, COMMAND data sources use a parser.

The following parsers are built into Resource Manager:

• Cacti
• Nagios
• Auto
• JSON
• ps
• uptime

Other parsers are included in ZenPacks that monitor devices over SSH, for example, ZenPacks.zenoss.LinuxMonitor.parsers.linux.ps.

The set of data points configured in the data source must correspond to the set of metrics returned by the parser.

Cacti

The format expected by the Cacti parser is:

datapoint1:1234 datapoint2:9876

Assuming an uptime data source with data points named, 1min, 5min, and 15min, the output might look like:

1min:1.11 5min:2.12 15min:2.59

For more information, see the Cacti manual.

Nagios

The format expected by the Nagios parser is:

Descriptive text, Datapoint 1 = 1234, Datapoint 2 = 9876 | datapoint1=1234, datapoint2=9876

The "pipe" character (|) splits the output into two parts.

The first part contains descriptive text and optional "friendly" representations of the collected metrics. This part is used as the message of any events generated by the data source.

The second part contains the collected metrics that are actually parsed and stored in the data points configured on the data source.

Assuming an uptime data source with data points named, 1min, 5min, and 15min, the output might look like:

Uptime: 48 days, 3 hours, 45 minutes. Loads: 1.11, 2.12, 2.59 | 1min=1.11, 5min=2.12, 15min=2.59

For more information, see Nagios Core - Performance Data.

Auto

The Auto parser attempts to interpret the output of a command as Nagios. If this fails, it will attempt to parse the output as Cacti.

JSON

The JSON parser can extract data points and multiple events from a string of JSON formatted text.

The expected format is:

{
  "values":{
    "":{
      "datapoint1":1234,
      "datapoint2":9876
    }
  },
  "events":[
    {
      "severity":0,
      "summary":"A summary of the event",
      "eventKey":"some_event_key",
      "eventClass":"/Some/Event/Class"
    }
  ]
}

The "values":{} section can include data points from a device or from its components. If the metrics are from a device, format the "values":{} section as in the previous code sample. The blank string ("":{}) indicates that the following values are intended for the device.

If the data source is gathering component metrics, the "values":{} section must include each component name and the data points belonging to that component:

{
  "values":{
    "component1":{
      "datapoint1":1234
    },
    "component2":{
      "datapoint1":5678
    }
  },
  "events":[]
}

The ps and uptime parsers

The ps and uptime parsers are included in templates that belong to the /Server/SSH/AIX device class. Because of differences in command output between various Unix and Linux distributions, these parsers are unlikely to work well with a user-created data source.

Walkthrough: Creating a COMMAND data source

By following the steps below, you can create a COMMAND data source that checks a Linux /tmp directory for size and file count.

This walkthrough process asssumes that:

• You are monitoring devices in the /Server/SSH/Linux device class.
• You have chosen one of these devices to test the new data source against.
• The monitoring user account specified in zCommandUsername is zenmonitor.
• The selected script called by the command data source (see below) is already in place on the target device in /home/zenmonitor/scripts/.
• The selected script is executable by the user account specified in zCommandUsername.

Note

This walkthrough is designed to illustrate the process of creating a COMMAND data source using a specific example. We recommend that you perform this walkthrough in a test environment. It is not intended for production use. Because of differences in OS versions, distributions, and more, it is possible that these steps may fail in your environment.

Walkthrough process steps

This walkthrough consists of the following steps that walk you through creating a template to deploying it to production. Following the steps are scripts that you can use for testing.

We recommend that you perform this walkthrough in your test environment. It is not inteneded for production use.

• Step One: Create a template
• Step Two: Add a data source
• Step Three: Configure the data source
• Step Four: Add data points
• Step Five: Create graph definitions
• Step Six: Test the template
• Step Seven: Deploy to production

In addition to these tasks, this walkthrough includes scripts that are used in the example.

Step One: Create a template

Creating and testing a new data source is best performed on a new, unbound monitoring template. This prevents the data source from applying to unintended devices and generating events while it is being configured.

1. In the Resource Manager user interface, navigate to ADVANCED > Monitoring Templates.
2. Click the Add a monitoring template (+) button in the lower left corner.
3. Enter a name for the template: TmpDirectoryMonitor.
4. Select /Server/SSH/Linux in the Path dropdown list.
5. Click Submit.

Step Two: Add a data source

The new template contains a single data source. Be sure that the name of the data source is recognizable by your users.

1. Click the Add data source (+) button in the top left.
2. Enter a name for the data source: tmpcheck.
3. Select COMMAND in the Type dropdown list.
4. Click Submit.

Step Three: Configure the data source

The data source remotely invokes a script installed on the target device.

1. Double-click the data source.
2. In the Command Template field, provide the full path to one of the example scripts:
   • /home/zenmonitor/scripts/example_cacti.sh
   • /home/zenmonitor/scripts/example_json.sh
   • /home/zenmonitor/scripts/example_nagios.sh
3. In the Parser dropdown list, choose the parser that matches the script (Cacti, JSON, or Nagios).
4. Select the Use SSH checkbox.
5. Click Save.

Step Four: Add data points

The script called by the data source returns two data points. The data source must have matching data points so that the parser can store them.

Note

Data point names are case sensitive.

1. In the data source Actions menu (gear icon), select Add Data Point.
2. Enter a name for the data point: tmpCount.
3. Click Submit.
4. Repeat steps 1-3 in this task for the tmpSize data point.

Step Five: Create graph definitions

Each data point has its own configured graph definition. While you can use a single graph to display both data points, the size of the tmpSize metric might mask the value of tmpCount.

1. In the Graph Definitions section of the page, click the Add graph definition (+) button.
2. Enter the name for the graph as Count, then click Submit.
3. Click the Count graph definition to select it.
4. In the graph definition Actions menu (gear icon), select Manage Graph Points.
5. In the Manage Graph Points dialog box, open the + menu and choose Data Point.
6. In the Data Point dropdown list, choose tmpcheck.tmpCount, and click Submit.
7. Click Save.
8. Double-click the Count graph definition.
9. In the View and Edit Graph Definition dialog box that opens, set the following values:
   • Units: Files
   • Min Y: 0
10. Click Submit.
11. Repeat steps 1-10 in this task to create the Size graph, using the tmpcheck.tmpSize data point, Bytes for the Units, and 0 for Min Y.

Step Six: Test the template

Choose a single device to bind the template to for testing. We recommend that this device be a "test" or "QA" device with a Production State below "Production," or otherwise configured to not match any active event Triggers.

1. In INFRASTRUCTURE > DEVICES, navigate to the selected test device.
2. In the Actions menu (gear icon) in the lower left corner, select Bind Templates.
3. In the AVAILABLE column, select the TmpDirectoryMonitor template.
4. Move the template to the SELECTED column by doing one of the following actions:
   • Double-click the template name.
   • Click the template name, then click the Add to Selected ("right arrow") button.
5. Click SAVE.
6. In the bottom left corner of the device page, select Monitoring, and then choose either Collect Device data or Collect Device data (Debug).
7. Check the Graphs page for the device to confirm that metrics are saved.

Step Seven: Deploying to production

After testing a template against a single device and confirming it works as intended, you might want to apply it to additional devices or device classes.

If this template was intended for actual production use, these steps would apply the template to all devices in the /Server/SSH/Linux class and any subclasses.

1. In INFRASTRUCTURE > DEVICES, navigate to the chosen test device.
2. In the Actions menu (gear icon) in the lower left, select Bind Templates.
3. In the SELECTED column, choose the TmpDirectoryMonitor template.
4. Move the template to the AVAILABLE column by doing one of the following actions:
   • Double-click the template name.
   • Click the template name, then click the Remove from Selected ("left arrow") button.
5. Click SAVE.
6. Navigate to ADVANCED > Monitoring Templates.
7. Select the TmpDirectoryMonitor template in the left pane.
8. In the bottom-left template Actions menu (gear icon), select Toggle Template Binding.

Walkthrough scripts

The scripts below are designed to check the /tmp directory for size and the number of files it contains. They then return both values in one of the general purpose parser formats supported by command data sources.

Note

The following scripts are intended only to demonstrate the output formats recognized by each parser. They are not intended for production use and might not work in your environment.

example_cacti.sh

#!/bin/bash

# Get the size and file count of /tmp
# and set them as perf variables.

TMPSIZE=$(du -sb /tmp | awk '{ print $1 }')
TMPCOUNT=$(ls /tmp | wc -l)

# NOTE: `du -sb` may fail if the configured zCommandUsername
# does not have permissions to sub-directories of /tmp.
#
# NOTE: `ls` is not recursive and will not count files
# in sub-directories of /tmp.
#
# Substitute the variables into the output string.
# The Cacti output format looks like
#
# <key>:<value>
#
# For a command data source with data points datapoint1 and datapoint2
# the output would look like
#
# datapoint1:1234 datapoint2:9876
#

OUTPUT_STRING="tmpSize:$TMPSIZE tmpCount:$TMPCOUNT"

# Return the output string.

echo $OUTPUT_STRING

example_json.sh

#!/bin/bash

# Get the size and file count of /tmp
# and set them as perf variables.
# Get the 5 largest files and
# set them as an event variable.

TMPSIZE=$(du -sb /tmp | awk '{ print $1 }')
TMPCOUNT=$(ls /tmp | wc -l)
TMPFILES=$(du -a /tmp/ | sort -n -r | head -n 6 | tail -n 5)

# NOTE: `du -sb` may fail if the configured zCommandUsername
# does not have permissions to sub-directories of /tmp.
#
# NOTE: `ls` is not recursive and will not count files
# in sub-directories of /tmp.
#
# Substitute the variables into the output string.
# The JSON parser expects a specific format of JSON
# and cannot accept/interpret an arbitrary payload.
# With a payload of only datapoint1 and datapoint2,
# the output would look like:
#
# { "values": { "": { "datapoint1": 1234, "datapoint2": 9876 } }, "events": [] }
#
# The "values":{} section can contain data points for
# multiple components:
#
# { "values": { "component1": { "datapoint1": 1234, }, \
# "component2": {"datapoint1": 5678} }, "events": [] }
#
# The use of the empty string "" indicates values for the
# device itself and is required for device-level data points.

OUTPUT_STRING="
{
  \"values\": {
     \"\": {
        \"tmpSize\": $TMPSIZE,
        \"tmpCount\": $TMPCOUNT
      }
    },
    \"events\": [
        {
            \"severity\": 2,
            \"summary\": \"The largest files in /tmp are $TMPFILES\",
            \"eventKey\": \"tmp_errors\",
            \"eventClass\": \"/Capacity/Storage\"
        }
    ]
}
"

# Return the output string.

echo $OUTPUT_STRING

example_nagios.sh

#!/bin/bash

# Get the size and file count of /tmp
# and set them as perf variables.

TMPSIZE=$(du -sb /tmp | awk '{ print $1 }')
TMPCOUNT=$(ls /tmp | wc -l)

# NOTE: `du -sb` may fail if the configured zCommandUsername
# does not have permissions to sub-directories of /tmp.
#
# NOTE: `ls` is not recursive and will not count files
# in sub-directories of /tmp.
#
# Create the parts of the output string
# and set them as variables.
# The Nagios output format looks like
#
# Some string of text | <'key'>=<value>, <'key'>=<value>
#
# For a command data source with data points datapoint1 and datapoint2
# the output would look like
#
# Data points 1 and 2 collected | 'datapoint1'=1234, 'datapoint2'=9876
#

OUTPUT_STRING="/tmp check: Size = $TMPSIZE bytes, File Count = $TMPCOUNT"
OUTPUT_SEPARATOR=" | "
OUTPUT_PERFDATA="'tmpSize'=$TMPSIZE, 'tmpCount'=$TMPCOUNT"

# Assemble the parts of the output string.

echo $OUTPUT_STRING$OUTPUT_SEPARATOR$OUTPUT_PERFDATA

Testing COMMAND data sources

There are several ways to test COMMAND data sources.

Command-line testing

Use the zencommand service in debug mode to test COMMAND data sources.

1. Log in to the Control Center master host as a user with serviced CLI privileges.

2. Start an interactive session in the zencommand container as the zenoss user.

   serviced service attach zencommand su - zenoss


   If you have multiple collectors, you may receive output similar to the following:

   # serviced service attach zencommand su - zenoss
   Name            ServiceID                      DepID/Path
   zencommand      a6j3ne3cec7mhe2xrts09tn37      Production/Zenoss.resmgr/Zenoss/Collection/localhost/Austin/zencommand
   zencommand      20da6j6yqfazsv1vr2j0j590v      Production/Zenoss.resmgr/Zenoss/Collection/localhost/Dallas/zencommand
   zencommand      cvkm5msejfvpxkhrcby9ui1q3      Production/Zenoss.resmgr/Zenoss/Collection/localhost/Houston/zencommand
   zencommand      b78ca4fw0k358zn3i4gfl9bce      Production/Zenoss.resmgr/Zenoss/Collection/localhost/localhost/zencommand
   multiple results found; select one from list


   In this case, replace zencommand with the ServiceID of the zencommand instance on the appropriate collector. The command to attach to the Austin zencommand instance would be:

   serviced service attach a6j3ne3cec7mhe2xrts09tn37 su - zenoss


   Note

   If the zencommand instance is not running on the Control Center master, Control Center will attempt an SSH session (as the current user) to the delegate host where that instance is running.

   If the Control Center master can't create that SSH session, you will need to SSH to that delegate directly to attach to the container.

3. Perform a debug run of the zencommand executable. Replace <DEVICE_ID>, <COLLECTOR>, and <DATA_SOURCE> with their appropriate values.

   zencommand run -v10 -d <DEVICE_ID> --monitor=<COLLECTOR> --datasource=<TEMPLATE>/<DATA_SOURCE> --showfullcommand --showrawresults


   Testing the uptime data source on a device named linuxssh.zennycorp.com, monitored by the Austin collector would look like:

   zencommand run -v10 -d linuxssh.zennycorp.com --datasource=Device/uptime --monitor=Austin --showfullcommand --showrawresults


4. Exit the container.

   exit


GUI testing

To test a data source from the Resource Manager GUI:

1. Navigate to the template containing the data source to test.

2. Double-click the data source to open the Edit Data Source window.

3. In the Monitor Against a Device field, enter a device ID.

4. Click Monitor.

Using 3rd party plugins

You can use COMMAND data sources to execute Nagios or Cacti plugins. Output from these plugins can be parsed by zencommand as long as the appropriate Nagios or Cacti parser is configured.

These plugins are not provided by Zenoss.

Nagios return codes

Nagios plugins are configured to provide a POSIX return code when they return data. The Nagios parser uses this return code to set the severity of the generated event.

The following table contains the return codes and their mappings to Zenoss event severities:

Nagios service status	Return code	Zenoss event severity
OK	0	Clear
WARNING	1	As configured on data source
CRITICAL	2	As configured on data source + 1
UNKNOWN	3	As configured on data source

For comprehensive information about Nagios® plugins, refer to the Nagios® Plugins Development Guidelines.
